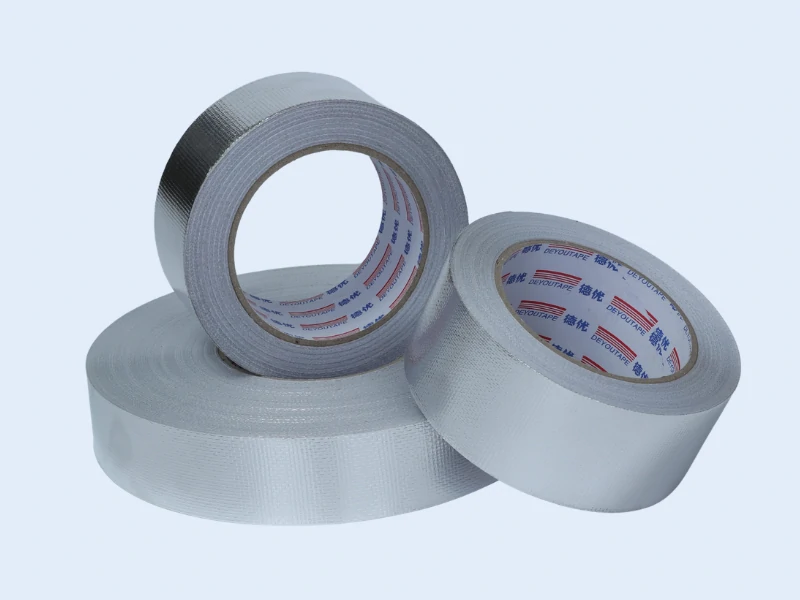

Aluminum Glass Cloth Tape is a high-performance industrial tape made by laminating aluminum foil with reinforced glass fiber cloth, coated with solvent acrylic or synthetic rubber pressuresensitive adhesive. It combines the reflective, barrier properties of aluminum foil with the exceptional mechanical strength of glass fiber, delivering superior durability and stability for demanding sealing, insulation and protection jobs.
|
|
Backing |
Adhesive |
Thickness Micron |
Adhesion (N/25mm) |
Tensile (N/25mm) |
Elongation (%) |
Service Temp (°C) |
|---|---|---|---|---|---|---|---|
| AG705G | Alum.-Glass | Rubber-Resin | 160 | 18 | 255 | 5 | -20 ~ +80 |
| AG705H | Alum.-Glass | Rubber-Resin | 175 | 18 | 265 | 5 | -20 ~ +80 |
| AG725G | Alum.-Glass | solvent acrylic | 170 | 18 | 255 | 5 | -30 ~ +120 |
| AG725H | Alum.-Glass | solvent acrylic | 185 | 18 | 265 | 5 | -30 ~ +120 |
| AG725R | Alum.-Glass | solvent acrylic | 170 | 18 | 255 | 5 | -30 ~ +120 |
| AG18225R | Alum.-Glass | solvent acrylic | 280 | 20 | 255 | 5 | -30 ~ +120 |
AG705G: Aluminum-Glass Cloth backing (7u Foil / FR Glue / 12x12 Mesh Glass)
AG705H: Aluminum-Glass Cloth backing (7u Foil / Polyethylene / 12x12 Mesh)
AG725G: Aluminum-Glass Cloth backing (7u Foil / FR Glue / 12x12 Mesh Glass)
AG725H: Aluminum-Glass Cloth backing (7u Foil / Polyethylene / 12x12 Mesh)
AG725R: Aluminum-Glass Cloth backing (7u Foil / FR Glue / 90gsm Glass Cloth)
AG18225R: Aluminum-Glass Cloth backing (18u Foil / FR Glue / 200g Mesh Glass)

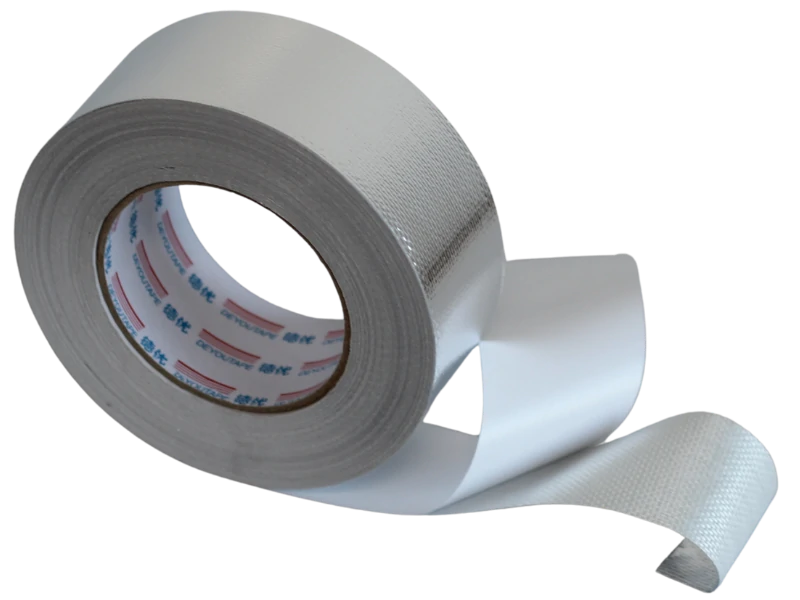

Resists oxidation, weak acids, alkalis and many chemicals; suitable for harsh industrial and marine environments.
Glass fiber reinforcement greatly improves tensile strength, puncture and tear resistance compared to standard aluminum foil tape.
Stable performance from -30°C to 120°C; retains adhesion and shape without cracking or peeling.
Bonds securely to metal, aluminum, stainless steel, plastic, fiberglass and uneven/irregular surfaces.
Aluminum surface reflects heat, reduces energy loss and improves insulation efficiency in HVAC systems.
Excellent impermeability blocks moisture, air and condensation, protecting ducts and pipes long-term.
Good fire resistance and weatherability for indoor and outdoor applications.
Odorless, non-toxic and safe for HVAC, food packaging lining and construction uses.
-- Sealing seams, joints and connections of air conditioning ducts.
-- Bonding and repairing insulation boards, fiberglass and foam insulation materials.
-- Sealing large HVAC ducts and ventilation systems.
-- Splicing and sealing cold/hot water pipes.
-- Pipe insulation and sealing in shipbuilding and marine engineering.
-- Vapor barrier for refrigeration pipelines.
-- Heat shielding and wrapping for wire harnesses and engine compartments.
-- Reflective layer in electric floor heating systems.
-- Insulation and protection for electrical components and transformers.
-- Stove explosion-proof bonding and heat insulation veneer.
-- Repair and maintenance of refrigeration and air conditioning appliances.
-- Sealing electronic enclosures for electromagnetic shielding.
-- Sealing gaps around windows and doors to prevent water infiltration.
-- Surface protection for metals (aluminum alloy, stainless steel).
-- Waterproofing, dustproofing and heat insulation for outdoor facilities.
A: Our glass fiber reinforced version has much higher tensile and tear strength, better durability and longer service life, especially for heavy-duty and load-bearing applications.
A: Yes. It features UV resistance, weather resistance and moisture barrier, making it reliable for outdoor HVAC, pipes and construction projects.
A: Yes. It withstands continuous temperatures up to 120°C and provides excellent heat reflection and thermal insulation.
A: It adheres strongly to aluminum, steel, plastic, fiberglass, foam board, glass and most construction and industrial materials.
