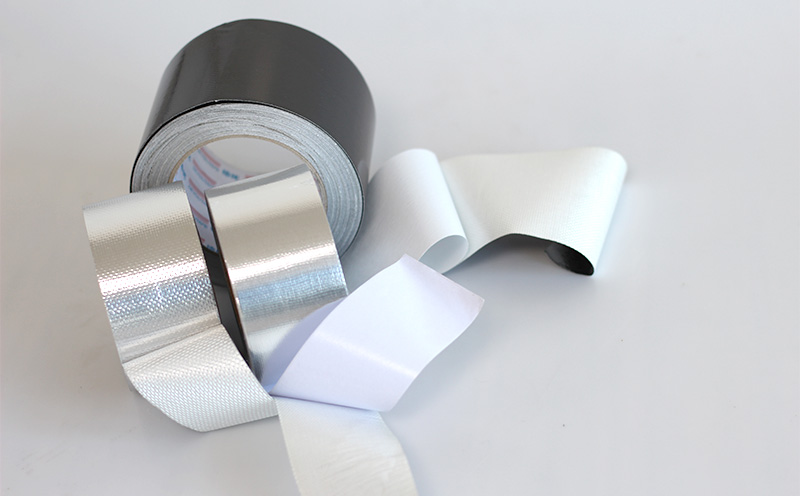

Reinforced foil tape is designed to provide a vapor barrier seal on HVAC duct insulation. The tape is offered in silver color of outer surface that it will be UV reflective duct insulation wrapping.

Reinforced foil tape backing is glass fiber reinforced aluminum film coated with water-based acrylic adhesive and protected by a silicone paper liner.

Reinforced foil tape is tear-resistant and offers a super high-tack, acrylic adhesive that bonds tightly to surfaces. The tape can be used on applications that operate within a wide temperature range.

The reinforced aluminum foil tape are used on pipes, ducts, and buildings for both interior and exterior applications. They cut easily and install easily in the field. They are available in smooth or irregular surface finish in a variety of thicknesses.

ALUMINUM FOIL TAPE FEATURES:

  • Excellent level of adhesion and performance at higher temperatures.
  • High-strength foil-scrim laminate backing resists tearing.
  • High quality adhesive capable of bonding on a wide variety of substrates in cold climates.
  • High-tack synthetic rubber adhesive forms an instant bond.
  • Vapor barrier, reflecting heat, reflecting light, and UV-resistant design.

ALUMINUM FOIL TAPE APPLICATIONS:

  • General patching, sealing and fastening applications.
  • Union of fiberglass sheets or duct joints.
  • Insulation sealing of cold rooms.
  • Recommend use as sheet metal duct water vapor seal.
  • Rigid insulation of closing air ducts.

TAPE PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

43Micron

1.7Mil

PSTC-133 / ASTM D 3652

Total Thickness

83 Micron

3.3Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

15N/25mm

52.5 Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

20cm

8.0In.

PSTC-6 / ASTM D 3121

Tensile Strength

100 N/25mm

22.7Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-30℃ to +80℃

-22℉ to +176℉



Applying Temperature

+10℃ to +40℃

+50℉ to +105℉



TAPE ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds

Log Roll:1200mm x 50m

Jumbo Roll:1200mm x 900m
