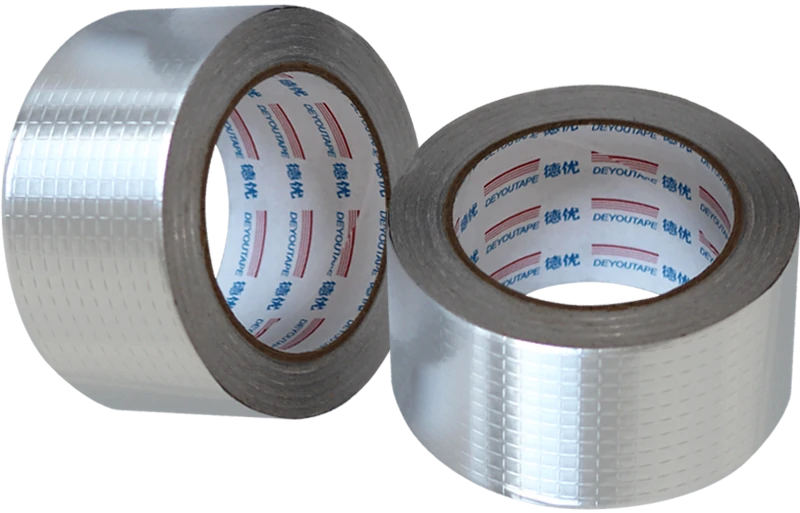

Air Conditioner Aluminum Foil Tape AFA1855

Thickness 18um normal Aluminum foil backing, coated with Solvent Acrylic adhesive, protected by an easy-release silicone paper liner.



Air Conditioner Foil Tape without scrim reinforced backing is a commercial grade foil tape. Suitable for sealing joints and seams of foil-faced insulation materials.

  • Air Conditioner Aluminum Foil Tape Introduction

Air conditioner aluminum foil tapes are single-faced adhesive tape of Aluminum Foil backing which is coated by Solvent Acrylic adhesive (PSA). Air conditioner HVAC aluminum foil tape will be offer to good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees ).


Air conditioner aluminum foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, air-conditioner duct work applications. AFA 1855 Aluminum foil tape is a type of tape that is made up of aluminum foil as backing material with one side acrylic adhesive. Air Conditioner Foil Tape has a lot of application in wide range of industries with good chemical and heat resistance. Air Conditioner Foil Tape is used on seams and joints of air-conditioner duct and pipe.



FEATURES
Air conditioner HVAC aluminum foil tape backing provides excellent heat and light reflection. The high-performance Acrylic adhesive used in the adhesive tape has strong adhesion and excellent retention, and provides firm and reliable sealing and adhesion for the joints and seams of central air-conditioning duct.


High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in air-conditioning ductwork application.


Low moisture vapor transmission rate makes AFA1855 an excellent vapor barrier.


Aluminum foil tape 1855 service Temperature range from -30℃ to +150℃.



TYPICAL PHYSICAL PROPERTIES

AFA 1855 Air conditioner aluminum foil tape is soft malleable aluminum foil coated with an aggressive Acrylic adhesive. Superior quick stick at normal temperatures with superior low temperature performance at freezing.

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

18 Micron

0.72Mil

PSTC-133 / ASTM D 3652

Total Thickness

55 Micron

2.2 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

20N/25mm

72Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

35 N/25mm

9.1Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-30℃ to +150℃

-22℉ to +302℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:
AFA Series HVAC aluminum foil tapes is most commonly used to exposed surfaces of Duct wrap, HVAC Ductwork, Exterior wall insulation, Metal building insulation, Pipeline insulation, Hot water tank insulation.

The AFA 1855 Air conditioner aluminum foil tape can provide excellent steam barrier for wrapping the steam pipe to prevent the temperature from losing outwards. Greatly improve the thermal insulation performance. Air conditioner aluminum tape can also be used to isolate the harm of electromagnetic wave to human body, so as to avoid the influence of voltage and current on the function. In addition, it has a good effect on electrostatic discharge after grounding.


AFA 1855 Air conditioner aluminum tape can form a heat shield, which can optimize the working performance of the refrigerator, extend the service life of the refrigerator, and avoid the refrigerator from thermal radiation.


AFA1855 Air conditioner aluminum tape can wrap copper cold coil in the refrigerator wall to prevent leakage.



ROLL SIZE:
Finish Roll:
50mm x 50m     2” x 55yds
75mm x 50m     3” x 55yds
Log Roll:   1020mm x 50m
Jumbo Roll: 1020mm x 3000m
