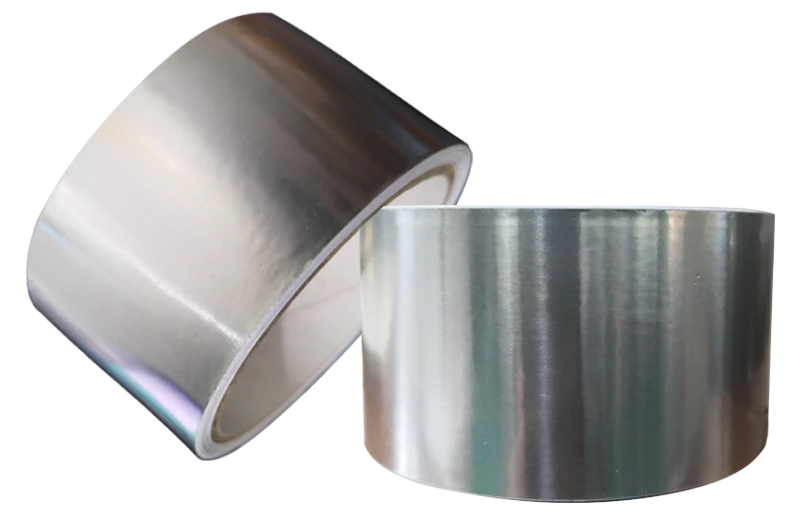

Aluminum Foil Tape Description



This Fiber Glass Aluminum Foil Tape utilizes unique advanced composite technology. It consists of a 7µm (0.27 Mil) aluminum foil reinforced with two-way glass fiber. The tape features a special adhesive composite that forms a dense, smooth, and flat film on the aluminum foil surface. The veneer is coated with a high-adhesion, high initial adhesion rubber-type pressure-sensitive adhesive. This reinforced aluminium foil tape matches well with glass wool panel ducts and galvanized iron duct systems, ensuring excellent moisture tightness. Its soft, reinforced nature also makes it well-suited for conforming to rounded corners and irregular surfaces.

Enhance the performance and longevity of your sealing and insulation projects with 2-Way Fiber Glass Aluminum Foil Tape. Whether used in ductwork, industrial applications, or fireproofing projects, it offers outstanding sealing, moisture resistance, and durability.

Tape Applications:

  • Kitchen and Bathroom Sealing: Ideal for waterproofing and fireproofing in kitchen and bathroom areas, as well as flue sealing connections.
  • Ductwork and Insulation: Perfect for use in HVAC systems, specifically for sealing ductwork, pipes, and insulation joints.
  • Industrial Uses: Suitable for a variety of industrial applications that require high-performance sealing, moisture resistance, and durability.

Tape Features:

  • High Performance: This fiber glass aluminum foil tape offers high light reflection and impressive longitudinal and transverse tensile strength.
  • Superior Sealing: It is impermeable to air and water, providing good sealing performance.
  • Durable and Flexible: Designed to perform in both industrial and residential applications, this tape maintains flexibility and strength even on rounded corners or irregular surfaces.
  • Aging Resistance: The tape is highly resistant to aging, providing long-term durability both indoors and outdoors.
  • Moisture Barrier: Features a low moisture vapor transmission rate, ensuring excellent sealing and patching capabilities.
  • Aesthetic Match: The silver aluminium foil tape seamlessly matches silver-faced ductwork and pipe insulation.
  • Low Moisture Vapor Transmission: Ensures superior sealing and patching performance, offering long-lasting protection against leaks and moisture penetration.

Aluminum Foil Tape Technical Data

Properties:

PROPERTIES METRIC ENGLISH TEST METHOD
Backing Thickness 85Micron 3.34Mil PSTC-133 / ASTM D 3652
Total Thickness 105 Micron 431 Mil PSTC-133 / ASTM D 3652
Adhesion to Steel 25N/25mm 90Oz./In. PSTC-101 / ASTM D 3330
Tensile Strength 40 N/25mm 9.1Lb/In PSTC-131 / ASTM D 3759
Elongation 3.0% 3.0% PSTC-131 / ASTM D 3759
Service Temperature -30℃ to +150℃ -22℉ to +302℉
Applying Temperature -10℃ to +40℃ +50℉ to +105℉

Roll Size:

Finish Roll:

50mm x 50m 2" x 55yds
75mm x 50m 3" x 55yds
Log Roll: 1020mm x 50m
Jumbo Roll: 1020mm x 3000m
