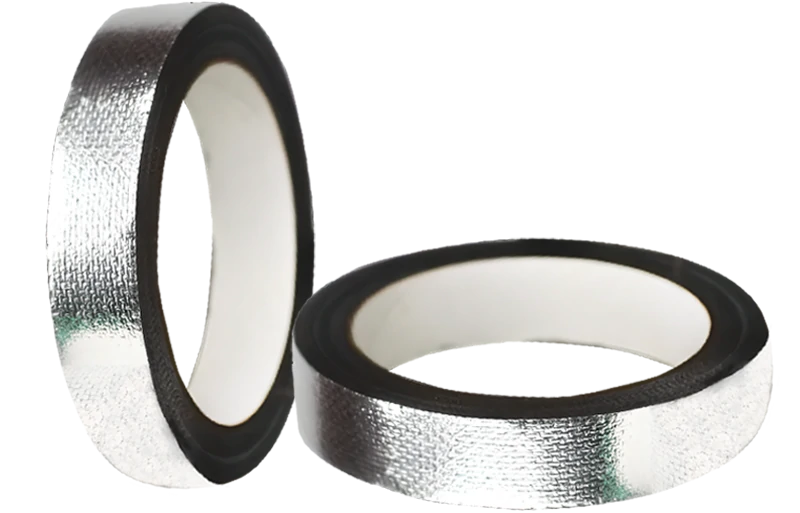

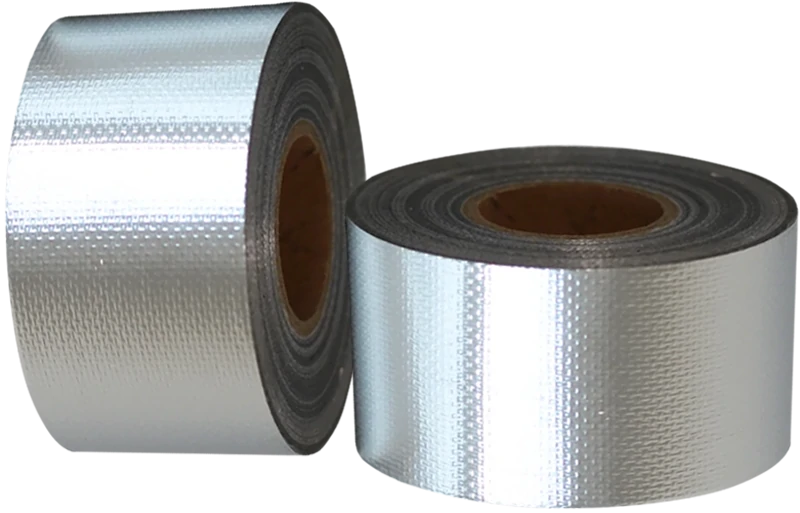

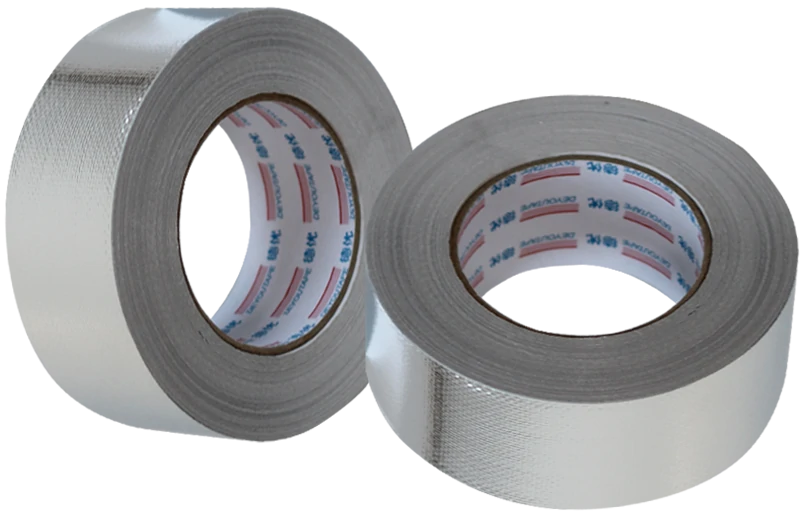

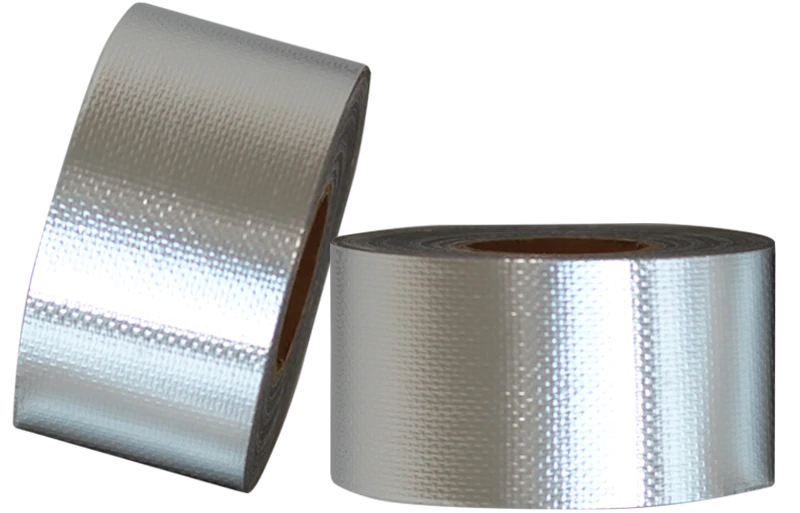

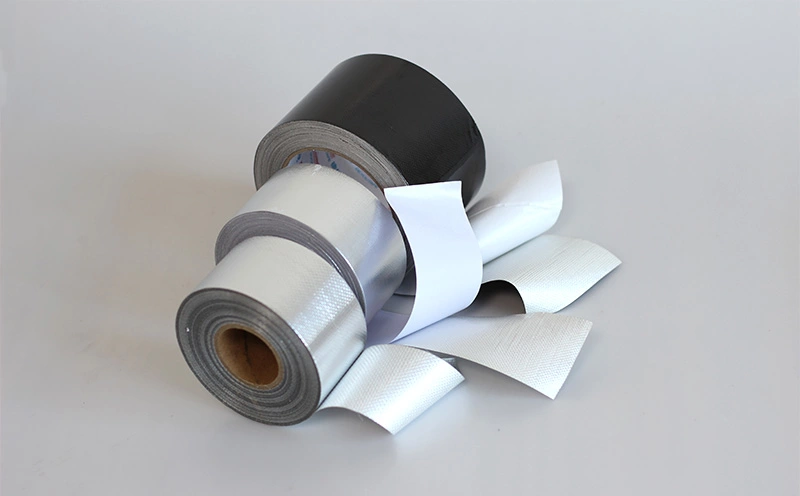

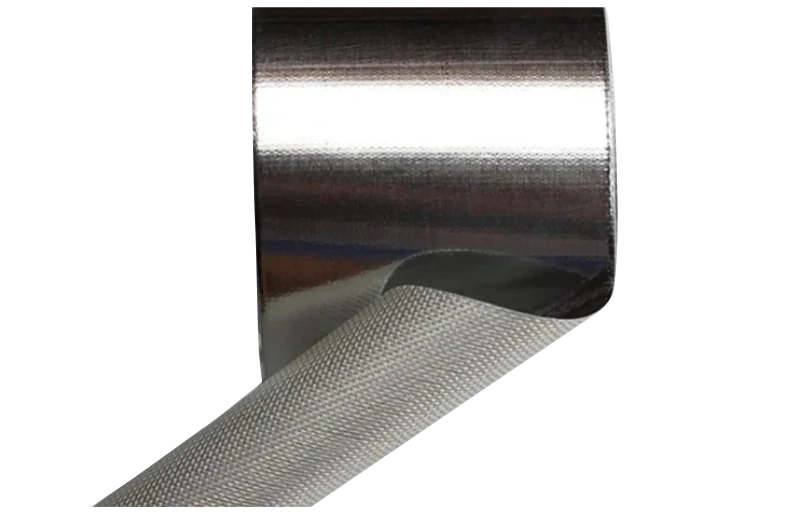

Aluminum Foil Tape Description



High temp aluminum foil tape consists of an aluminum foil, glass cloth backing combined with a pressure sensitive Acrylic adhesive. It is a thin tape that combines glass cloth with a laminate of aluminum foil. Aluminum foil / Glass cloth backing (7um foil / FR glue / 90gsm glass cloth 7×9), coated with a high performance Synthetic Rubber-resin adhesive, protected by an easy-release silicone release paper.

High temperature aluminum foil tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. High temp aluminum foil tape is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -70 degree Celsius to +225 degree Celsius.

Tape Applications:

High temp aluminum foil tape ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. Commonly used in HVAC duct work, aerospace, automotive and general industrial applications.

Tape Features:

  • High tensile strength, glass cloth reinforced foil tape offers puncture, fracture and tear resistance.
  • Performs continuously over a wide temperature range from -20℃ to +80℃,-4℉ to +176℉.
  • Light and flexible construction easily conforms to curved or irregular surfaces.
  • Thermally conductive and reflective backing assists with heat shielding.

Aluminum Foil Tape Technical Data

Tape Properties:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

120 Micron

4.8Mil

PSTC-133 / ASTM D 3652

Total Thickness

170 Micron

6.8 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

18N/25mm

64.8Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

20cm

8.0 In.

PSTC-6 / ASTM D 3121

Tensile Strength

255 N/25mm

58.0Lb/In

PSTC-131 / ASTM D 3759

Elongation

5.0%

5.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Fire Rating

Class O & 25 / 50

Class O & 25 / 50

BS476 Pt.6 & 7 / UL 723

Tape Roll Size:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1200mm x 50m

Jumbo Roll: 1200mm x 900m
