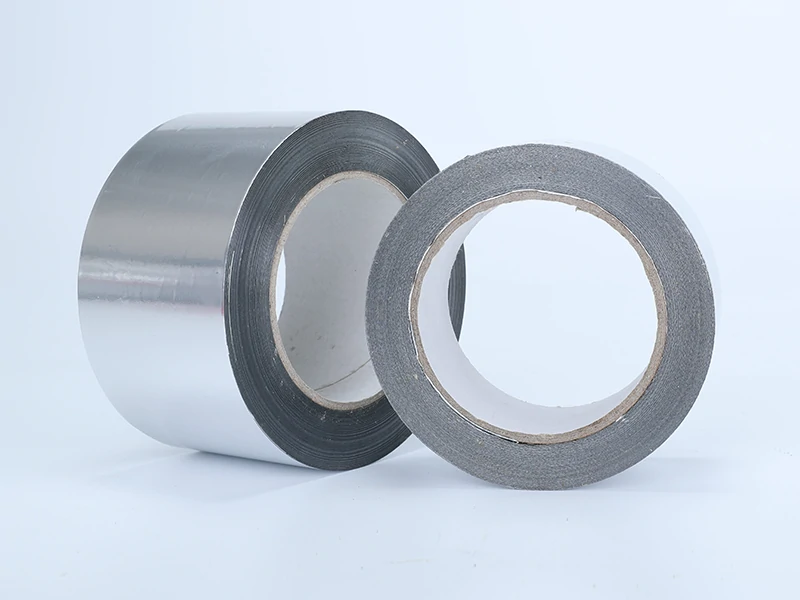

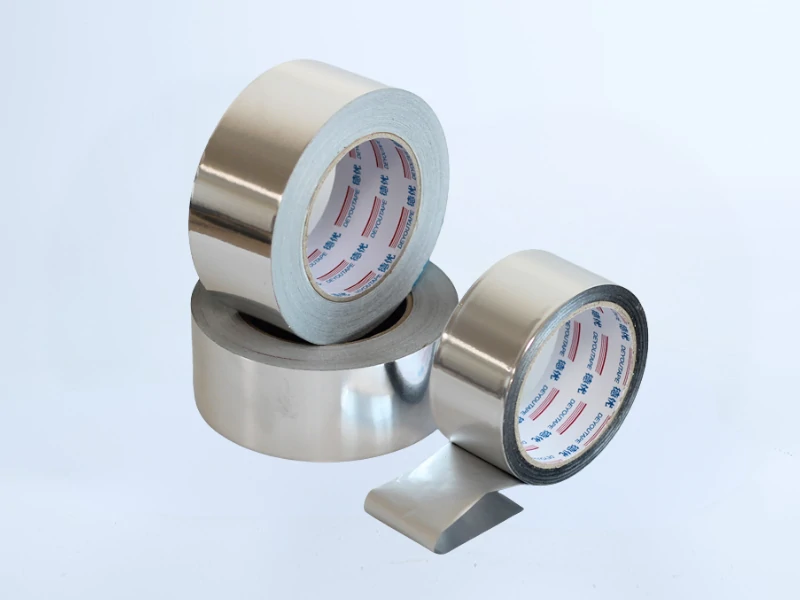

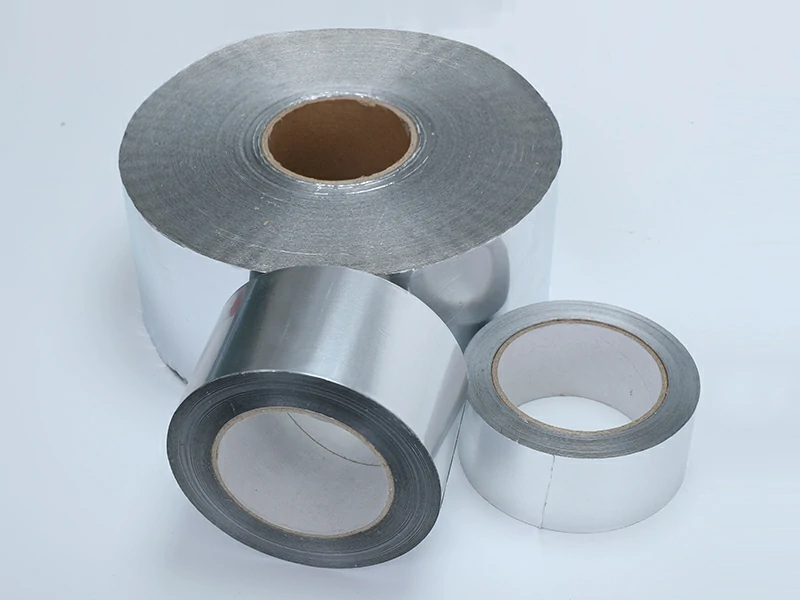

Self-Wound Aluminum Foil Tape consists of a dead-soft aluminum foil backing coated directly with a high-performance adhesive. Unlike traditional tapes, it has no paper liner, allowing for quicker application, reduced waste, and greater efficiency in industrial and commercial settings. The foil is malleable and flexible, conforming easily to irregular surfaces while resisting cracking, lifting, and UV degradation.
| Model No. |
Foil (μm) |
Total (μm) |
Adhesion |
Tack (cm) |
Tensile |
Elong. (%) |
|---|---|---|---|---|---|---|
| NO.AFA3070WL | 30 | 70 | 18 N/25mm | 20 | 45 N/25mm | 3 |
| NO.AFA4080WL | 40 | 80 | 18 N/25mm | 20 | 55 N/25mm | 3 |
| NO.AFA5090WL | 50 | 90 | 18 N/25mm | 20 | 75 N/25mm | 3.5 |
| NO.AFA75125WL | 75 | 125 | 18 N/25mm | 20 | 100 N/25mm | 5.0 |
Self-Adhering Adheres aggressively to itself when overlapped, creating a secure, seamless seal.
Saves time and labor by eliminating liner stripping. Produces less waste, making it ideal for high-volume applications.
Withstands extreme temperatures and resists UV degradation, suitable for both indoor and outdoor use.
Strong resistance to chemicals and solvents, making it perfect for masking in paint stripping and chemical milling.
Dead-soft aluminum backing easily wraps around curves, corners, and irregular shapes without lifting.
Can be torn by hand or cut with scissors for quick, hassle-free installation.
Effectively seals out moisture, dust, and vapor, protecting surfaces and insulation.
Self-wound aluminum foil tape is a multi-purpose tool used across various industries:

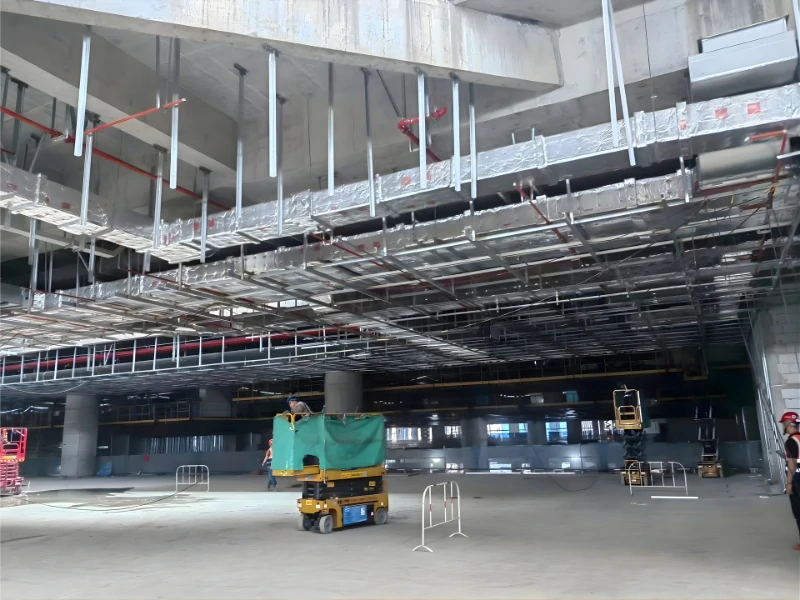

-- Sealing seams and joints in heating and cooling ductwork.
-- Creating a moisture and air leakage barrier.
-- Masking: Ideal for chemical paint stripping and electroplating processes due to its solvent resistance.
-- Heat Shielding: Protecting components from high temperatures and reflecting heat.
-- Attaching tubes, channels, or coils to expand thermal exchange areas.
-- Wrapping and securing cooling tubes inside refrigerators and freezers.
-- Repairing insulation and coil attachment.
-- Patching: Repairing metal surfaces, ducts, and pipes.
-- Harness Wrap: Excellent for wrapping wire harnesses in automotive and industrial applications.

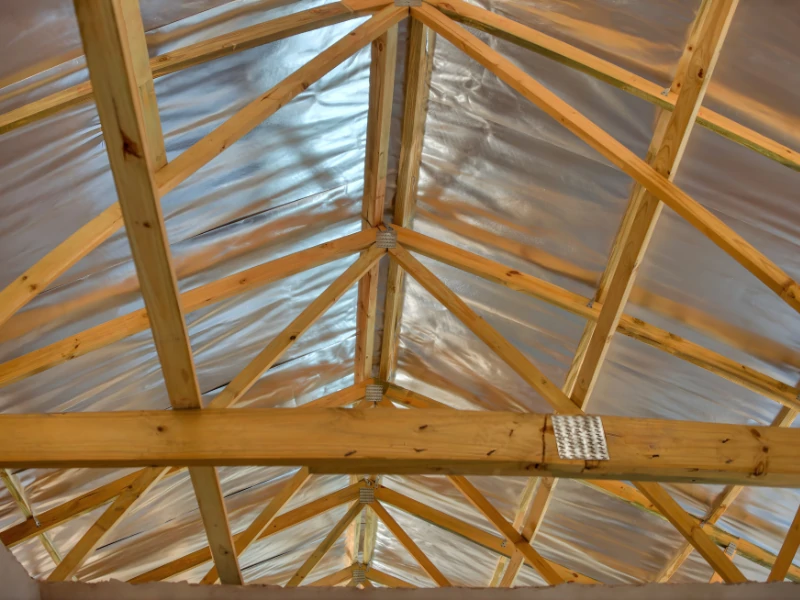

-- Moisture Barrier: Sealing enclosures and surfaces against moisture and vapor.
-- Chemical Milling: Used as a mask in chemical milling processes.
-- Electroplating Mask: Protects specific areas during electroplating.
-- Appliance Manufacturing: Heat reflection and component assembly.
Traditional aluminum foil tapes require removing a silicone release liner, which can slow down production and create clean-up waste. Self-wound tape eliminates this step entirely. The adhesive is protected by the smooth backside of the aluminum foil on the roll, allowing it to unwind smoothly while staying ready for immediate use. This design results in:
