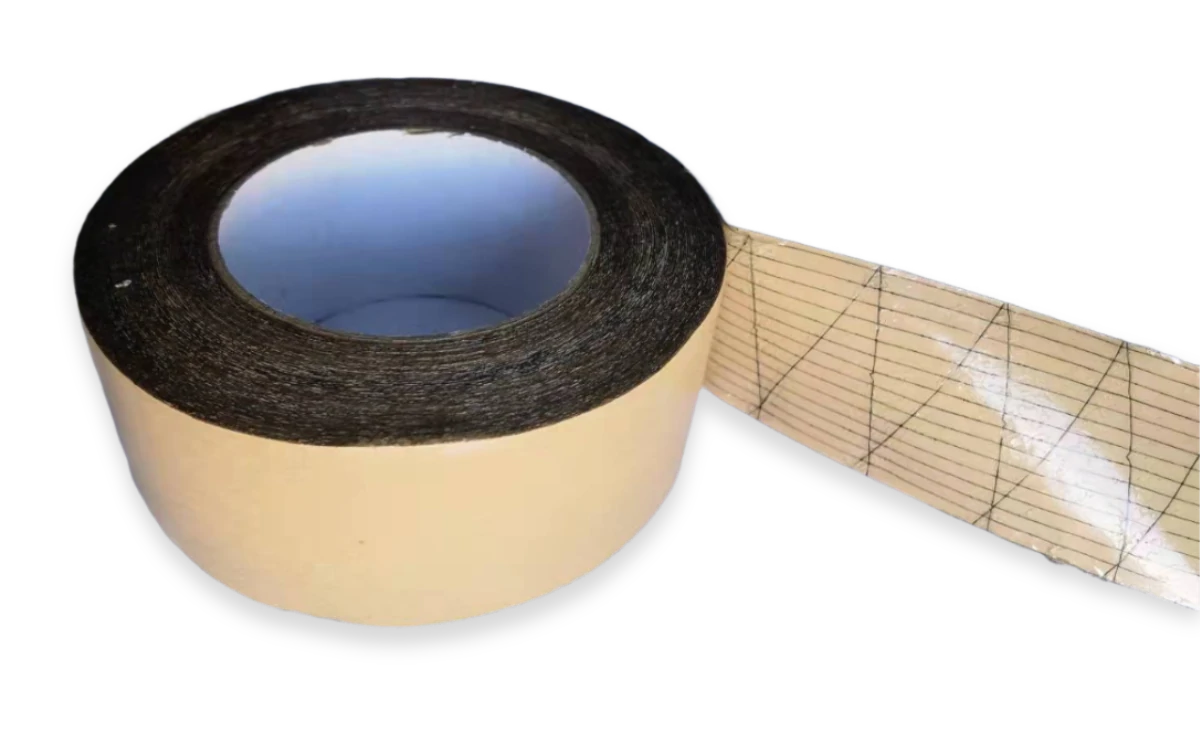

Double sided scrim tape is a double sided tape consisting of a special glassfiber scrim or polyester scrim coated on both sides with an aggressive, high shear Acrylic adhesive.

This double sided scrim tape combines excellent initial adhesion, cohesion strength, shear strength and long term adhesion. For a wide variety of bonding applications where high adhesion is required especially to difficult surfaces such as foams, PE and PP films. Suitable for porous and rough or uneven surfaces such as embossed plastics and metals. Automotive, Transport and electronics industries. Use to bonding windows and doors, bonding carpets, cable trunking and polythene membranes.

TAPE TECHNICAL DETAILS:

Support:

Scrim

Adhesive Weight:

230-280g/m²

Total Thickness:

0.24mm

Temperature Resistance:

-40 to +140°C

Adhesive Strength (Contact Time 1 Hour):

Min 25 N/25mm

Liner:

Kraft release paper, 110 gsm Double sided silicone

Peel Adhesion to Steel(Based on Afera 5001):

37N/25mm

Dynamic Shear Resistance(Based on FTM 18):

0.14N/mm²
