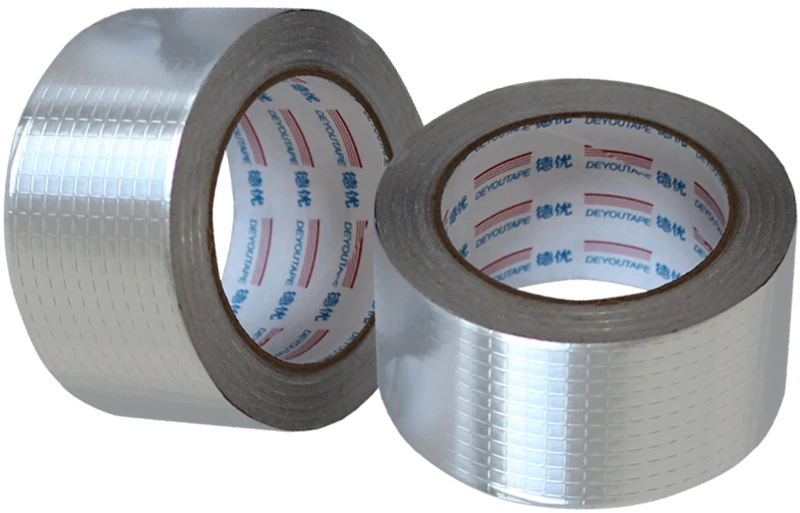

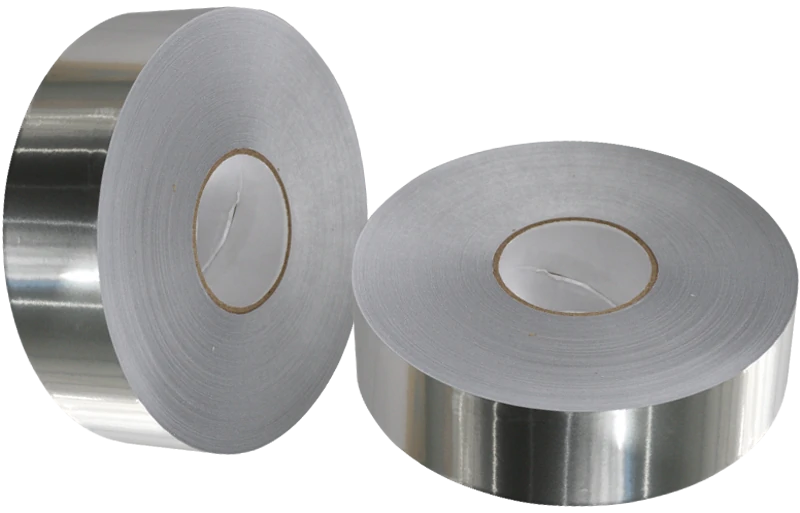

Duct foil tape is a single-faced adhesive tape of aluminum foil backing which is coated by solvent acrylic adhesive (PSA). The aluminum foil construction provides excellent thermal conductivity and heat resistance, making it suitable for high-temperature applications. This aluminum foil tape is an essential component in HVAC installations and repairs, as it helps maintain the integrity and efficiency of the ductwork system.
Duct foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term outdoor applications. These duct aluminum foil tapes are often resistant to moisture and chemicals. They offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees ).
Sealing ductwork: Seal joints and seams in ductwork to prevent air leaks, which can improve the efficiency of the HVAC system and reduce energy costs.
Insulation: Provide insulation by sealing and covering gaps in ductwork, helping to maintain the temperature of the air flowing through the system.
Repairing HVAC systems: Repair damaged sections of ductwork, providing a temporary or sometimes permanent fix.
Moisture and vapor barrier: The tape can act as a moisture and vapor barrier for ductwork, helping to prevent condensation and moisture buildup.
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
Backing Thickness |
50Micron |
2.0Mil |
PSTC-133 / ASTM D 3652 |
Total Thickness |
90Micron |
3.6Mil |
PSTC-133 / ASTM D 3652 |
Adhesion to Steel |
20N/25mm |
72Oz./In. |
PSTC-101 / ASTM D 3330 |
Tensile Strength |
75 N/25mm |
17.0Lb/In |
PSTC-131 / ASTM D 3759 |
Elongation |
3.0% |
3.0% |
PSTC-131 / ASTM D 3759 |
Service Temperature |
-30℃ to +150℃ |
-22℉ to +302℉ |
|
Applying Temperature |
-10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
50mm x 50m | 2” x 55yds |
75mm x 50m | 3” x 55yds |
Log Roll: | 1020mm x 50m |
Jumbo Roll: | 1020mm x 3000m |
