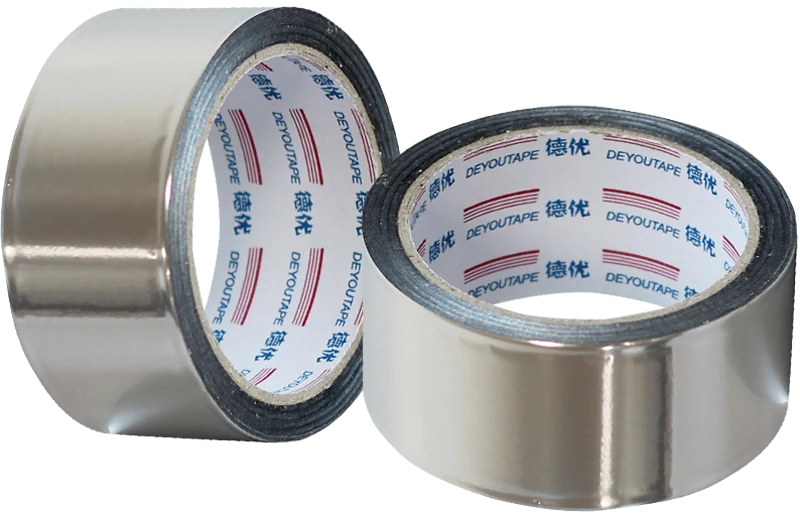

Aluminum foil tape without liner is a type of pressure-sensitive tape, backing made entirely of aluminum foil, strong pressure-sensitive acrylic adhesive is applied directly to one side of the aluminum foil backing. The adhesive side of the tape is directly exposed without a liner, allowing for easy application and immediate adhesion to various surfaces. The adhesive used is typically heat-resistant and offers good adhesion to a wide range of materials.

Aluminum foil tape without liner is flexible and conforms well to irregular surfaces, making it suitable for sealing joints, seams, and connections in HVAC (heating, ventilation, and air conditioning) systems, ductwork, piping, and other applications where a conformable tape is needed.

Aluminum Foil Tape Applications:

These Aluminum foil tapes are designed for fixing aluminium cooling tubes in the refrigeration industry, holding electric heat tracing cables, general purpose sealing and holding applications, moisture barrier, electroplating, Home appliance industry, Automotive industry, Aerospace industry.

Tape Features:

  • Excellent acrylic adhesive offer good tack and adhesion.
  • Stable adhesion in wide range of temperature (from -30 degrees to 150 degrees ).
  • Good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications.
  • Easy application and save labor.

Tape Properties:

er=”1″ width=”100%” cellspacing=”0″ cellpadding=”0″> &lt;td style=”text-align: center;” width=”115″>90Micron<td style=”text-align: center;” width=”142″>Total Thickness

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness</p> </td>

50Micron</p>

2.0Mil

PSTC-133 / ASTM D 3652

3.6Mil</p>

e=”text-align: center;” width=”172″>

PSTC-133 / ASTM D 3652

Adhesion to Steel

12N/25mm

43.2Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

75 N/25mm

17.0Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-30℃ to +150℃

-22℉ to +302℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉



Tape Roll Size:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds
Log Roll: 1020mm x 50m
Jumbo Roll: 1020mm x 3000m
