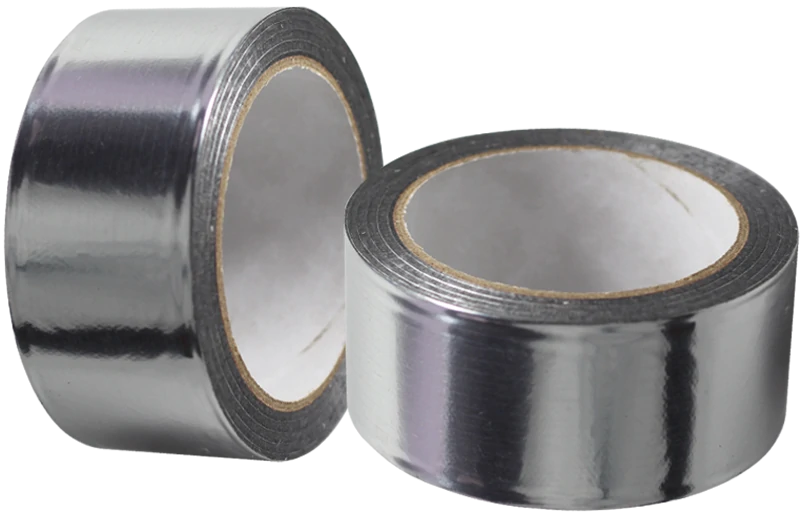

Refrigerator aluminum tape are single-faced adhesive tape of aluminum foil backing which is coated by solvent acrylic adhesive (PSA). The aluminum foil tape can be manipulated based on the selection of the monomers used in the formulation.

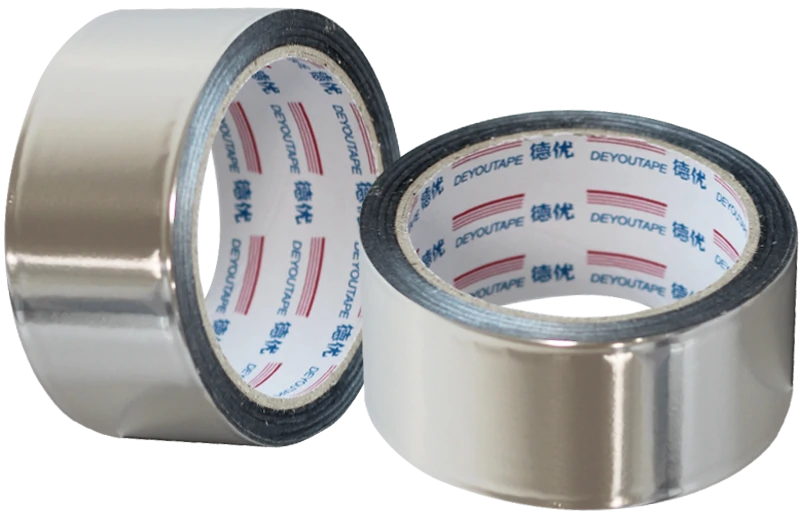

Refrigerator aluminum tape in which each layer of tape is directly on top of the last one. The aluminium foil tape without liner is a bright, soft temper aluminium foil, with a pressure sensitive adhesive. Foil is treated on one side with silicone for easy release on unwind.

Refrigerator aluminum tape don’t need to tear off the release paper liner during use, reduce operation time. So most of refrigerator factory use self wound aluminum foil tape.

Two types of condensers are External condenser and Skin condenser .Refrigeration’s purpose is to optimizing the thermal transfer while covering 100% of the tube avoiding PU to enter between the tube and refrigerator wall.

ALUMINUM FOIL TAPE APPLICATIONS:

Usually in the refrigeration market, Aluminum foil tape refrigeration are used to attach tubes, channels or coils expanding the area of thermal exchange.

ALUMINUM FOIL TAPE FEATURES:

  • It will be offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees).
  • The aluminum foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications.

TAPE PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

40 Micron

1.6Mil

PSTC-133 / ASTM D 3652

Total Thickness

80Micron

3.2 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

15N/25mm

54Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

55 N/25mm

12.5Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉



TAPE ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds

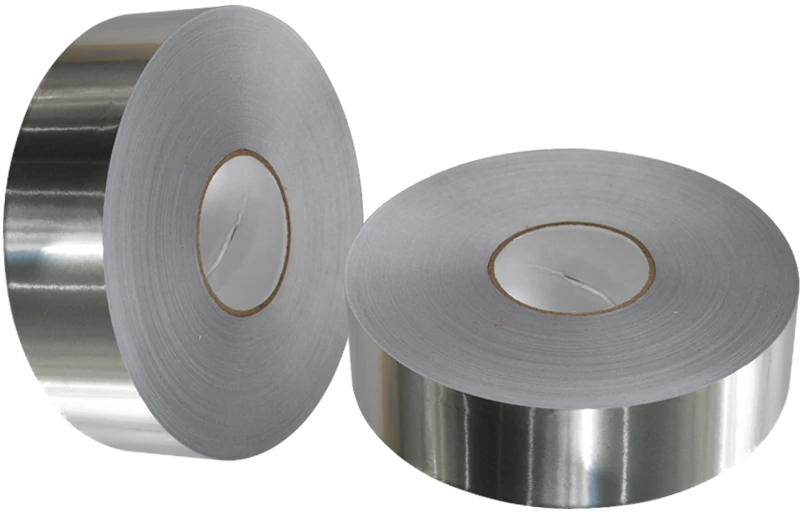

Log Roll: 1020mm x 50m
Jumbo Roll: 1020mm x 3000m
