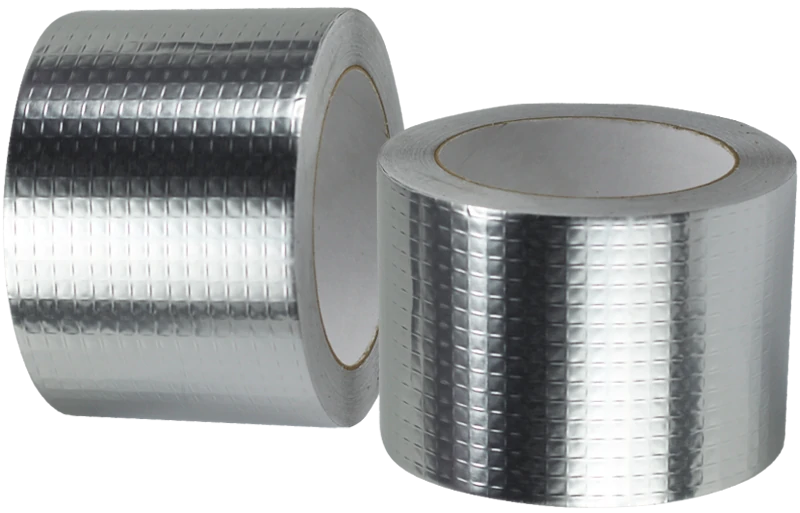

Aluminum foil tape HVAC AFR3070 is a rubber adhesive aluminum foil tape for HVAC duct works. The backing without scrim reinforced. It is a commercial grade foil tape. Suitable for sealing joints and seams of HVAC insulation materials.Thickness 30um normal aluminum foil backing, coated with synthetic rubber-resin adhesive, protected by an easy-release silicone paper liner.

Heater or heating element is an object with a purpose to emits heat in order to achieve higher temperature. The Aluminum foil tape HVAC sealing insulation materials to help heating elements to controlling and maintaining the right indoor temperature.

Ventilation is continuous process of air exchange and air circulation within the house or building. The HVAC aluminum tape help sealing the leak of ventilation and controlling inside temperature, removing, moisture, odors, smoke, heat, carbon dioxide and to replenish oxygen.

Air conditioning is in charge for heat removal and cooling of closed space, buildings and houses. Aluminum foil tape HVAC sealing the air conditioning ducts, help air conditioning elements to control of indoor air-humidity.

ALUMINUM FOIM TAPE APPLICATIONS:

HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. Aluminum foil tape HVAC is most commonly used to exposed surfaces of Duct tape wrap, HVAC Ductwork, Pipeline insulation.May also be used for other industrial uses requiring a tape with these characteristics and benefits.

ALUMINUM FOIM TAPE FEATURES:

  • Aluminum backing provides excellent reflection of both heat and light.
  • High quality adhesive with super strong adhesion and holding power.
  • Low moisture vapor transmission rate makes AFR3070 an excellent vapor barrier.
  • Service Temperature range from -20℃ to +80℃.

TAPE PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

30 Micron

1.2Mil

PSTC-133 / ASTM D 3652

Total Thickness

70 Micron

2.8 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

20N/25mm

72Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

45 N/25mm

10.2Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉



TAPE ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds
Log Roll: 1020mm x 50m
Jumbo Roll: 1020mm x 3000m
