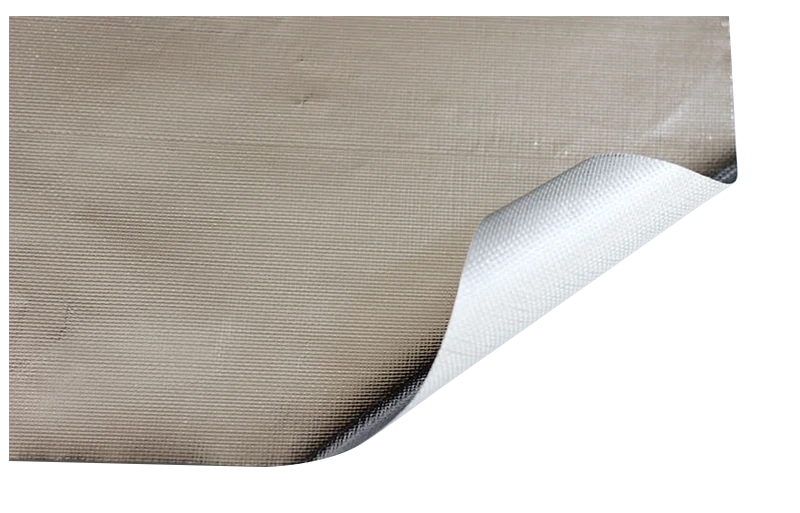

Foil Faced Vapor Barrier is a premium grade Foil-Scrim-Kraft facing with 3-way scrim and 80gsm Kraft, mainly used as a facing & vapor barrier for glasswool / rockwool / foam duct wrap insulation.
Foil faced vapor barrier is laminated 5 layers of structure, the outer layer is Aluminum foil and Kraft paper.The middle layer is the Glass fiber layer double side coated with adhesive, it increased tensile strength of Foil-Scrim-Kraft, and the Aluminum foil and Kraft paper are firmly bonded.
Foil faced vapor barrier is most commonly used to exposed surfaces of Duct wrap, HVAC Ductwork, Exterior wall insulation, Metal building insulation, Pipeline insulation, Hot water tank insulation.Also used as a insulation facing & vapor barrier for glasswool / rockwool / foam duct wrap insulation, also a good choice for radiant barrier applications because of its low emissivity.
INSULATION FACING COMPOSITION
|
Composition |
Description |
Value (English) |
Value (Metric) |
|
Foil |
Aluminum |
0.28 mil |
7 micron |
|
Reinforcing- MD |
Fiberglass |
2 inch spacing |
8 /100mm |
|
Reinforcing-XD |
Fiberglass |
3 inch spacing |
12 / 100mm |
|
Adhesive |
Polyethylene |
– |
– |
|
Kraft |
Natural |
49lbs / 3000 ft2 |
80gsm |
INSULATION FACING PROPERTIES
|
Physical properties |
Test Method |
Value (English) |
Value (Metric) |
|
Basis weight |
Scale |
23.5 lbs / 1000 ft2 |
20.1595%gsm |
|
Permeance (WVTR) |
ASTM E96, Procedure A |
0.1 perm |
5.75 ng/N.s |
|
Tensile Strength-MD |
ASTM D828 |
34 lbs / In |
150 N/25mm |
|
Tensile Strength-XD |
ASTM D828 |
17lbs / In |
75 N/25mm |
|
Burst Strength |
ASTM D774 |
58psi |
40 N/cm2 |
|
Low temperature Resistance |
ASTM D1790 4 hrs @ -40℉ (-40℃) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
High temperature Resistance |
ASTM D1790 4 hrs @ +240℉ (+116℃) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
Emissivity |
ASTM E408 |
-0.03 |
-0.03 |
Available Roll Width: 1.0m, 2.0m, 1.25m, 1.30m, 1.35m
