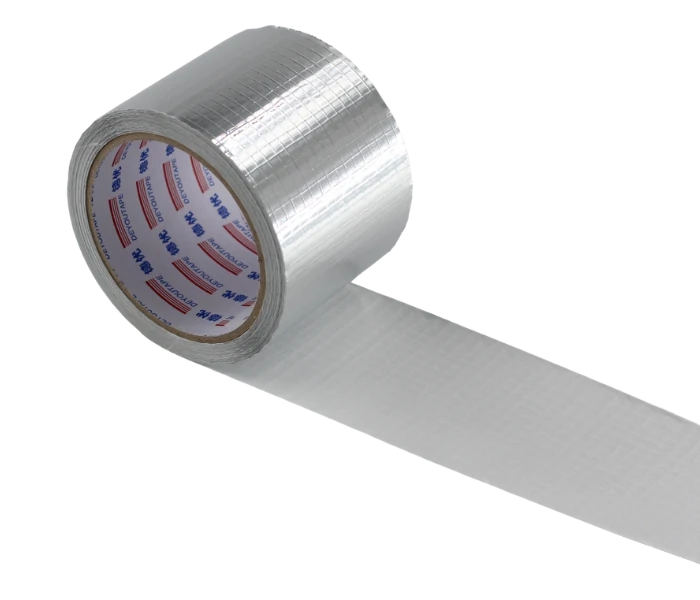

Our Foil Scrim Tape features a precision-engineered 4-layer construction designed for maximum performance and reliability:
Aluminum Foil Top Layer: Available in 18μm or 25μm thickness, this layer provides superior heat and light reflection, effectively reducing heat transfer and preventing energy loss in HVAC systems.
Reinforced Scrim Mesh: A 2-way scrim (5x5mm or 12.5x12.5mm grid) is laminated between the foil and adhesive layer, delivering enhanced tensile strength, tear resistance, and structural integrity to the tape, ensuring it maintains its sealing performance even under mechanical stress.
High-Performance Adhesive Layer: We offer three adhesive formulations to suit different application scenarios:
--Rubber-resin adhesive for excellent initial tack and strong permanent adhesion
--Solvent acrylic adhesive for reliable all-weather performance
--Cold weather solvent acrylic adhesive for low-temperature environments down to -30°C

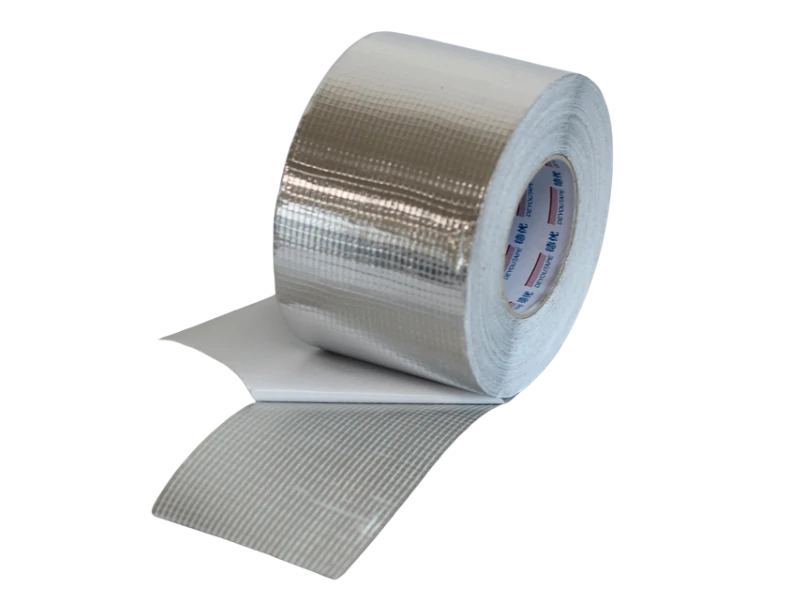

Easy-Release Silicone Release Liner: A protective silicone-coated release paper that prevents the adhesive from drying out, ensures easy peeling during application, and simplifies installation without special tools.
This tape is specifically designed to create airtight, watertight, and vapor-proof seals on HVAC ductwork, insulation materials, and industrial equipment, addressing common pain points like air leakage, moisture infiltration, and insulation degradation.
Below are the detailed technical specifications for our full range of Scrim Reinforced PE Sealing Tape models:
|
Model No. |
Backing Structure |
Adhesive Type |
Total Thickness (μm) |
Backing Thickness (μm) |
Adhesion to Steel (N/25mm) |
Tensile Strength (N/25mm) |
Elongation (%) |
Service Temperature (°C) |
Applying Temperature (°C) |
Test Method |
|---|---|---|---|---|---|---|---|---|---|---|
|
18μm Foil, 2-way Scrim 5x5mm |
Rubber-resin |
83 |
43 |
20 |
100 |
3 |
-20 ~ +80 |
+10 ~ +40 |
PSTC / ASTM |
|
|
25μm Foil, 2-way Scrim 5x5mm |
Rubber-resin |
95 |
50 |
22 |
90 |
3 |
-20 ~ +80 |
+10 ~ +40 |
PSTC / ASTM |
|
|
FS2125B |
25μm Foil, 2-way Scrim 12.5x12.5mm |
Solvent acrylic |
90 |
50 |
18 |
60 |
3 |
-20 ~ +80 |
+10 ~ +40 |
PSTC / ASTM |
|
FS1825B/CW |
18μm Foil, 2-way Scrim 5x5mm |
Cold weather solvent acrylic |
83 |
43 |
15 |
100 |
3 |
-30 ~ +80 |
-10 ~ +40 |
PSTC / ASTM |
|
FS2825B/CW |
25μm Foil, 2-way Scrim 5x5mm |
Cold weather solvent acrylic |
90 |
50 |
15 |
120 |
3 |
-30 ~ +80 |
-10 ~ +40 |
PSTC / ASTM |
Note: Custom sizes, thicknesses, and adhesive formulations are available upon request for OEM and bulk orders.
Delivers exceptional heat and light reflection; high tensile strength and tear resistance for long-term durability in demanding environments.
Provides super strong initial tack and permanent adhesion to steel, fiberglass, duct board, and other common HVAC materials; prevents seal failure over time.
Acts as a highly effective vapor barrier, blocking moisture infiltration and protecting insulation and duct systems from mold, corrosion, and performance loss.
Standard models perform reliably from -20°C to +80°C (-4°F to +176°F); cold weather models extend the range to -30°C to +80°C (-22°F to +176°F) for extreme climate conditions.
Silicone release liner peels off smoothly; no special tools or professional skills required for fast, efficient application on site.
Customizable thickness, adhesive type, and scrim specifications to match specific HVAC and industrial application requirements.
Manufactured to meet PSTC and ASTM test standards, ensuring consistent quality and performance for commercial and industrial use.
Our Foil Scrim Tape is versatile and widely used across the following scenarios, with a primary focus on the HVAC industry:
-- Joining and sealing seams and joints of foil-scrim faced laminated fiberglass blankets, duct boards, and pipe sections
-- Sealing connections and seams of flexible air ducts to prevent air leakage and maintain system efficiency
-- Repairing damaged HVAC duct insulation and sealing gaps in duct systems
-- Sealing joints of industrial pipe insulation to prevent heat loss and moisture damage
-- Creating vapor-proof barriers in building insulation systems for walls, roofs, and floors
-- Sealing seams of reflective insulation materials in commercial and residential construction
-- Cold storage and refrigeration system insulation sealing
-- HVAC systems in extreme cold climate regions (using our CW cold weather models)
-- General industrial sealing requiring heat reflection, moisture resistance, and high-strength adhesion
-- Automotive insulation and HVAC system sealing
-- Marine HVAC and insulation applications
A: Our Foil Scrim Tape is primarily used for airtight sealing of HVAC ductwork joints and seams, as well as creating vapor barriers in insulation systems. It is also suitable for industrial pipe insulation sealing, building insulation moisture protection, and other applications requiring heat reflection, high-strength adhesion, and moisture resistance.
A: Unlike standard duct tape, our product features a reinforced foil-scrim backing that delivers superior heat reflection, tear resistance, and long-term durability. It is engineered specifically for HVAC and industrial sealing, with a low moisture vapor transmission rate that acts as an effective vapor barrier, and it maintains its sealing performance across a wide temperature range, unlike regular duct tape which can degrade in extreme temperatures.
A: Our standard models (FS1805B, FS2805B, FS2125B) have a service temperature range of -20°C to +80°C (-4°F to +176°F). For extreme cold environments, our cold weather models (FS1825B/CW, FS2825B/CW) can withstand temperatures as low as -30°C (-22°F) while maintaining reliable adhesion and sealing performance.
A: Yes, we offer two specialized cold weather models: FS1825B/CW and FS2825B/CW. These tapes use a cold weather solvent acrylic adhesive that maintains excellent adhesion and flexibility in temperatures down to -30°C, making them ideal for cold storage, refrigeration systems, and HVAC installations in extreme cold climate regions.
A: The key differences are in the foil thickness and adhesive performance:
1. FS1805B features an 18μm aluminum foil backing, with a total thickness of 83μm, and delivers 20N/25mm adhesion to steel.
2. FS2805B features a thicker 25μm aluminum foil backing, with a total thickness of 95μm, and a higher adhesion strength of 22N/25mm to steel, making it more suitable for heavy-duty sealing applications. Both models use rubber-resin adhesive for excellent initial tack and perform across the same temperature range.
A: Absolutely. Our tape is widely used for joining and sealing flexible air duct seams and connections in HVAC systems. Its strong adhesion, flexibility, and durability ensure a long-lasting, airtight seal that prevents air leakage and maintains the efficiency of your HVAC system.
A: When stored in a cool, dry environment (10°C to 40°C, 30% to 70% relative humidity) away from direct sunlight and extreme temperatures, our tape has a shelf life of 12 months from the date of manufacture.
A: Yes, we support custom manufacturing for special sizes, thicknesses, and adhesive formulations to meet your specific project requirements. We also offer competitive pricing for bulk and OEM orders. Please contact our sales team for more information on custom solutions and bulk pricing.
