Insulation Facing Description

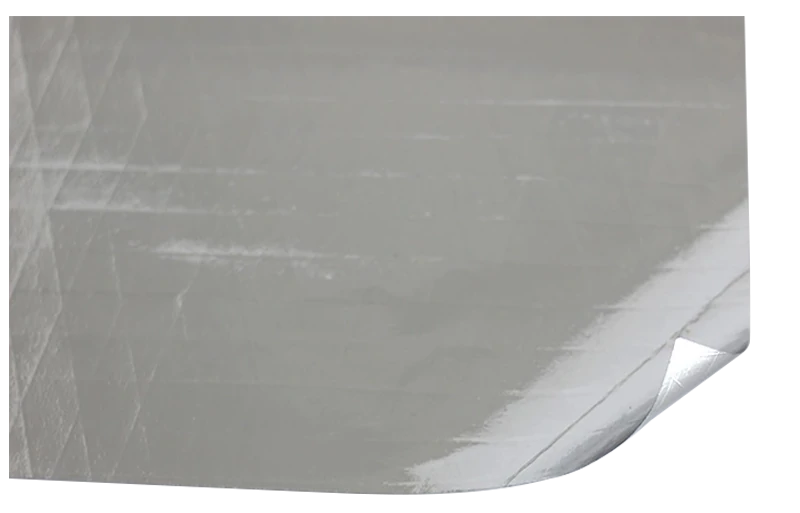

Double sided foil insulation is a type of insulation material that consists of two layers of reflective foil with a layer of insulation material sandwiched in between. The reflective foil layers are typically made of aluminum and are highly reflective, which helps to reflect radiant heat away from the insulated space. The insulation material in the middle layer provides additional thermal resistance and helps to reduce heat transfer through conduction and convection.

Double Sided Foil Insulation is ideally used as sarking and insulation under roofs, in walls behind cladding or under timber floors, for residential and commercial building. Combining with glass-wool /rockwool/ mineral wool/ foam insulation, it is excellent as a vapor barrier and reflective aluminum foil insulation for air-conditioning ducts, pipes and vessels.

This type of insulation is often used in hot climates to keep buildings cool by reflecting the sun’s heat away. It can also be used in cold climates to prevent heat loss by reflecting the heat back into the building. Double-sided foil insulation is lightweight, easy to install, and can provide effective insulation in a wide range of applications. It is excellent as radiant barriers, flame retardant and vapor barriers can reduce energy loss costs 5% to 10%.

Insulation Facing Technical Data

Aluminum Foil Insulation Properties:

Physical properties

Test Method

Value (English)

Value (Metric)

Basis weight

Scale

28.6Ibs/1000ft2

140gsm

Permeance (WVTR)

ASTM E96,

Procedure A

0.02 perm

1.15 ng/N.s

Tensile Strength-MD

ASTM D828

45 lbs / In

200 N/25mm

Tensile Strength-XD

ASTM D828

25lbs / In

110 N/25mm

Burst Strength

ASTM D774

75.4psi

52 N/cm2

Low temperature

Resistance

ASTM D1790

4 hrs @

-40℉ (-40℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

High temperature

Resistance

ASTM D1790

4 hrs @

+240℉ (+116℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

Emissivity

ASTM E408

0.03

0.03

Fire Rating

UL723/ASTM E84

Less25/50-Passed

Less 25/50 – Passed

Fire Rating

BS476Pt6&7

Class O – Passed

Class O – Passed



Available Roll Width: 1.20m, 1.35m

Aluminum Foil Insulation Composition:

Composition

Description

Value (English)

Value (Metric)

Foil

Aluminum

0.28 mil

7 micron

Reinforcing-MD

Fiberglass

 2/inch

 8/100mm

Reinforcing- XD

Fiberglass

3/inch

12/100mm

Adhesive

Flame-Retardant Glue





Kraft

Flame-Retardant

55.2Ibs/3000ft2

90gsm

Adhesive

Flame-Retardant Glue





Foil

Aluminum

0.28 mil

7 micron

Remarks:

1.The data above are typical values only, and should not be used for specifications purpose.

2.Tolerance: Weight and Thickness: ±10%;Width:±3mm; Length: Log Roll: ±0.3m, Jumbo Roll: ±0.5%.

3.The products should be stored at room temperature, kept away from wet and heat source.

4.The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
