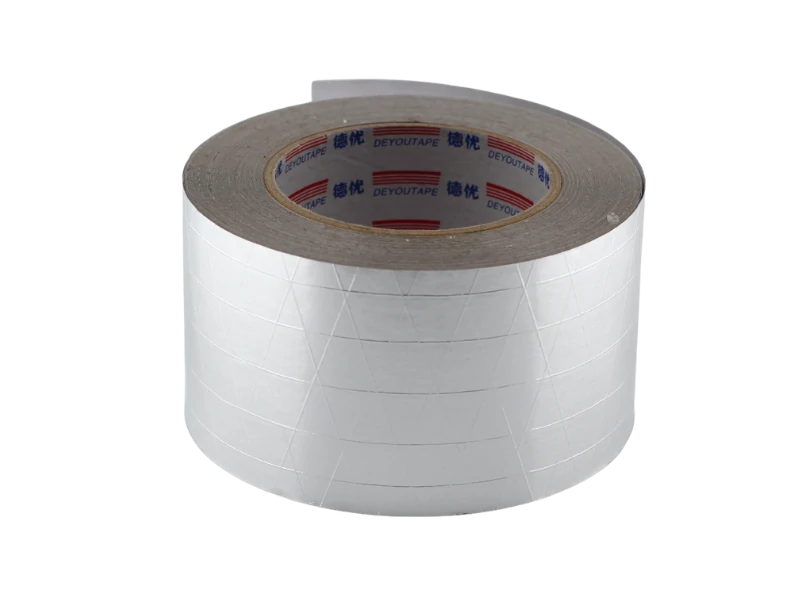

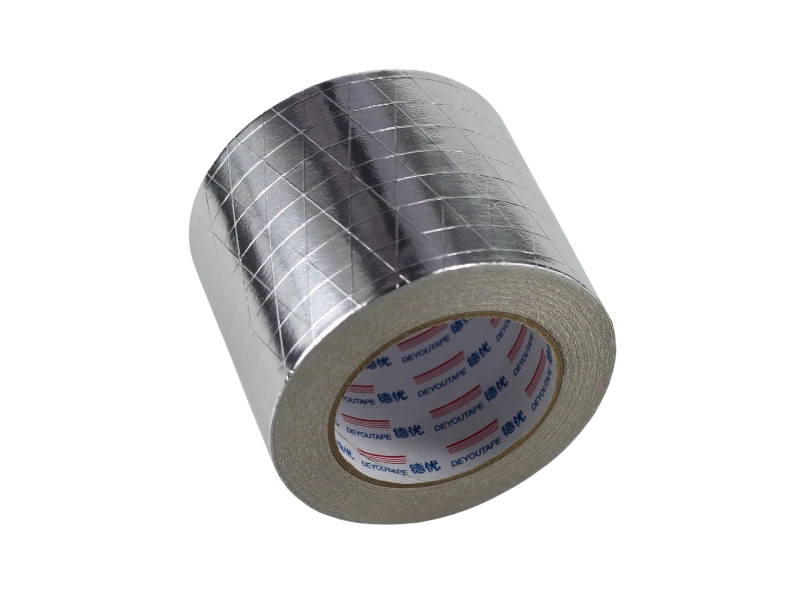

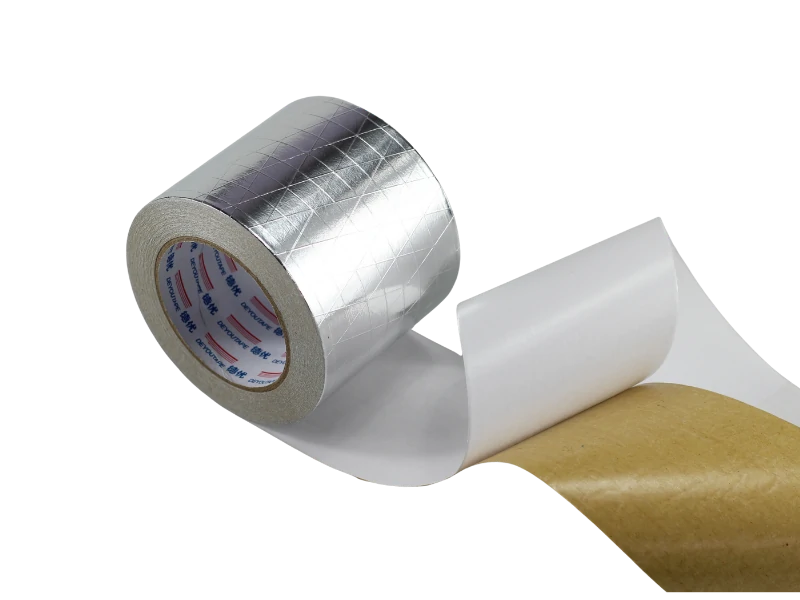

FSK Tape is a composite tape combining aluminium foil, fiberglass scrim and kraft paper. It adopts acrylic or synthetic rubber-resin adhesive, matched with easy-to-peel silicone release paper. The tape maintains good flexibility to avoid cracking and lifting after pasting, and acts as an effective moisture and vapor barrier.
With stable physical performance, different models cover diverse temperature resistance ranges and adhesion strengths to meet differentiated usage demands. The 3-way FSK backing delivers stronger structural reinforcement, while the 2-way version is cost-effective for conventional sealing work. Solvent acrylic adhesive adapts to extreme high and low temperatures, and solvent synthetic rubber-resin adhesive provides ultra-strong initial tack and bonding force. All tapes have uniform thickness and excellent heat & light reflection capacity, serving as ideal auxiliary materials for thermal insulation and sealing projects.
|
Model |
Backing Structure |
Adhesive Type |
Adhesion to Steel (N/25mm) |
Elongation |
Service Temperature |
Rolling Ball Tack |
Test Standard |
|---|---|---|---|---|---|---|---|
|
3-way Foil-Scrim-Kraft |
Synthetic rubber-resin adhesive |
25 |
1.0 % |
-20 °C ~ +80 °C |
- |
Adhesion: PSTC-101 / ASTM D 3330 Elongation: PSTC-131 / ASTM D 3759 |
|
|
2-way Foil-Scrim-Kraft |
Synthetic rubber-resin adhesive |
25 |
1.0 % |
-20 °C ~ +80 °C |
- |
Same as above |
|
|
3-way Foil-Scrim-Kraft |
Solvent acrylic adhesive |
20 |
2.0 % |
-30 °C ~ +120 °C |
15 cm |
Rolling Ball Tack: PSTC-6 / ASTM D 3121 Others same as above |
|
|
2-way Foil-Scrim-Kraft |
Solvent acrylic adhesive |
20 |
2.0 % |
-30 °C ~ +80 °C |
15 cm |
Same as above |
|
|
3-way Foil-Scrim-Kraft |
Solvent synthetic rubber-resin adhesive |
30 |
1.0 % |
-20 °C ~ +80 °C |
8 cm |
Same as above |
Low moisture vapor transmission rate, effectively blocks air and moisture leakage.
Multiple adhesive formulas support working temperatures from -30°C to +120°C, suitable for hot and cold environments.
Tensile strength reaches 120 N/25mm, anti-tear and durable during use.
Aluminium foil layer realizes superior heat and light reflection.
Prevents mold growth, fit for long-term use in building and ventilation systems.
Not easy to crack or peel off after application.
Equipped with silicone release paper for convenient peeling and installation.
High performance with reasonable cost, ideal for large-scale HVAC and construction projects.
2-way/3-way backing and various adhesives to match different application scenarios.
-- Seal seams and joints of rigid & blanket style fibreglass duct insulation and duct boards.
-- Bond and seal connections of flexible air ducts.
-- Inconspicuous repair for foil-backed insulation materials.
-- Wall, roof and building envelope insulation sealing, especially for metal buildings and industrial parks.
-- Vapor sealing for building insulation layers.
-- Sealing and reinforcement for pipe insulation, chilled water lines, hot-water piping, water tanks and storage vessels with foil-faced insulation.
-- Sealing for insulated enclosures, thermal equipment covers and jacketed vessels, applicable for long-term service.
Moisture-resistant ASJ insulation tape for sealing joints and seams in insulation systems
Ideal for robust insulation sealing in HVAC & construction. High-strength, moisture-resistant, and energy-efficient
high-performance sealing and insulation solution, particularly in HVAC systems and other insulation projects
Durable, high-performance reinforced aluminum foil tape, aluminum Foil + 2-way Scrim + Kraft laminated
Versatile, pressure-sensitive adhesive tape specifically designed for sealing and patching FSK faced duct wrap insulation in HVAC systems
Specifically designed for sealing and joining insulation materials, 120-micron backing, total thickness of 170 microns
Scrim-reinforced PE single-sided air sealing tape for OSB, plywood & membranes, designed for creating long-lasting airtight, moisture-resistant, and weatherproof seals
A: While both are high-strength variations of Reinforced Aluminum Foil Tape, they are designed to match distinct insulation facings. Foil-Scrim-Kraft Tape features a silver metallic finish optimal for sealing foil-faced duct wraps, rigid duct boards, and reflective bubble insulation. ASJ tape, or All Service Jacket Tape, features a heavy-duty white outer layer designed to match white-jacketed pipe insulation networks.
A: Yes. Despite their multi-layer mechanical reinforcement, our tapes apply easily to irregular, curved, or uneven geometric profiles without lifting or peeling.
A: No. The bi-directional or tri-directional fiberglass mesh layer provides outstanding puncture and tear resistance while in service, but when paired with our premium pressure-sensitive adhesive and release liner, it handles cleanly and cuts efficiently on the job site.
A: Our ASJ tape integrates an inner aluminum foil layer that maintains a zero-permeability vapor barrier, keeping moisture away from cold-water piping systems to prevent condensation and pipe sweating.
A: The scrim is a middle layer of bi-directional or tri-directional fiberglass mesh. It acts as a structural backbone, allowing the tape to bend cleanly with the primary insulation facing while providing the high tensile strength required to prevent tearing under pressure.
A: No. Our reinforced tapes are formulated with weather-resistant pressure-sensitive adhesives—such as cold-weather acrylics—ensuring they deliver solid holding power and resist lifting even under severe temperature fluctuations.
