Insulation Facing Description

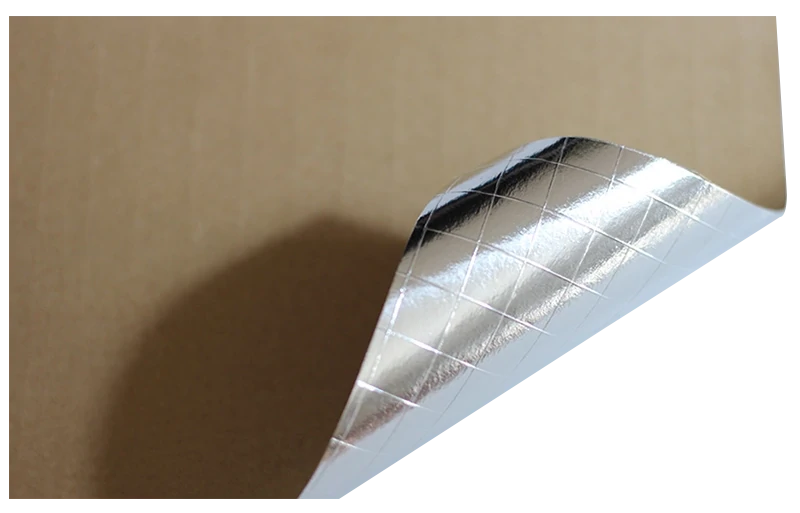

Foil-kraft-scrim facing FKSE-7151A is a industrial strength foil scrim kraft insulation.The insulation facing with 3-way scrim and 50gsm Kraft as well as heat-activated polyethylene on its back. No need for extra adhesive when using this foil scrim kraft paper.The thicker Kraft provides neat apperance and enhances tensile strength, tear resistant and durability.

The aluminum foil reflects radiant heat, contributing to a more energy-efficient building envelope by reducing heating or cooling demands depending on the season. The kraft paper layer helps prevent moisture from entering the insulation, which can reduce its effectiveness and potentially lead to mold growth. The scrim layer reinforces the facing, making it more tear-resistant and easier to handle during installation.

Applications:

Insulation: Foil-kraft-scrim facing is commonly used as a facing material for insulation products such as fiberglass, mineral wool, and foam board insulation.

HVAC Ductwork: It is used to wrap and insulate HVAC ductwork to improve thermal efficiency and prevent condensation.

Roofing: FSK facing can be used in roof insulation systems to enhance thermal performance and moisture resistance.

Wall Insulation: It is also applied in wall insulation systems to provide a protective barrier and improve energy efficiency.

Insulation Facing Technical Data

Composition:

Composition

Description

Value (English)

Value (Metric)

Foil

Aluminum

0.28 mil

7 micron

Reinforcing- MD

Fiberglass

2/ inch

8/100mm

Reinforcing-XD

Fiberglass

3 /inch

12/100mm

Adhesive

Heat-resistance

-

-

Kraft

Natural

30lbs / 3000 ft2

50gsm

Heat-Activated Coating

Polyethylene

0.8 mil

20 micron

Properties:

Physical properties

Test Method

Value (English)

Value (Metric)

Basis weight

Scale

20.8lbs / 1000 ft2

102gsm

Permeance (WVTR)

ASTM E96,

Procedure A

0.02 perm

1.15 ng/N.s

Tensile Strength-MD

ASTM D828

28.4 lbs / In

125 N/25mm

Tensile Strength-XD

ASTM D828

14.8lbs / In

65 N/25mm

Burst Strength

ASTM D774

43.5psi

30 N/cm2

Low temperature

Resistance

ASTM D1790

4 hrs @

-40℉ (-40℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

High temperature

Resistance

ASTM D1790

4 hrs @

+240℉ (+116℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

Emissivity

ASTM E408

-0.03

-0.03
